Anti-radiation shelter ARCA MAX 6.0 up to 30 persons
Commercial shelter · 30 persons
A larger-capacity certified shelter for business and public spaces. Anti-radiation shelter ARCA MAX 6.0 up to 30 persons.
Overview
A larger-capacity certified shelter for business and public spaces. Anti-radiation shelter ARCA MAX 6.0 up to 30 persons. ARCA is a multi-section reinforced-concrete bunker cast from high-grade C35/45 concrete with dense A500S reinforcement and a steel-fibre mix. Designed by leading engineers and proof-tested at the State Research Institute of Building Structures, it is certified to the highest protection classes (A-II to A-IV), absorbs air-blast overpressure above 300 kPa and reduces radiation exposure by up to a factor of 5000. Every unit ships fully equipped — reinforced airtight doors, forced ventilation, heating, power, seating and first-aid and fire-safety kits — with a 50-year warranty on the concrete structure. Every PerusTurva product is built to the CPS — Civil Protection Standard — a new-generation benchmark validated by engineering expertise and live-fire testing against modern threats, including a 120 mm mine, a 125 mm tank round and a Shahed-136 strike-drone warhead.
Specifications

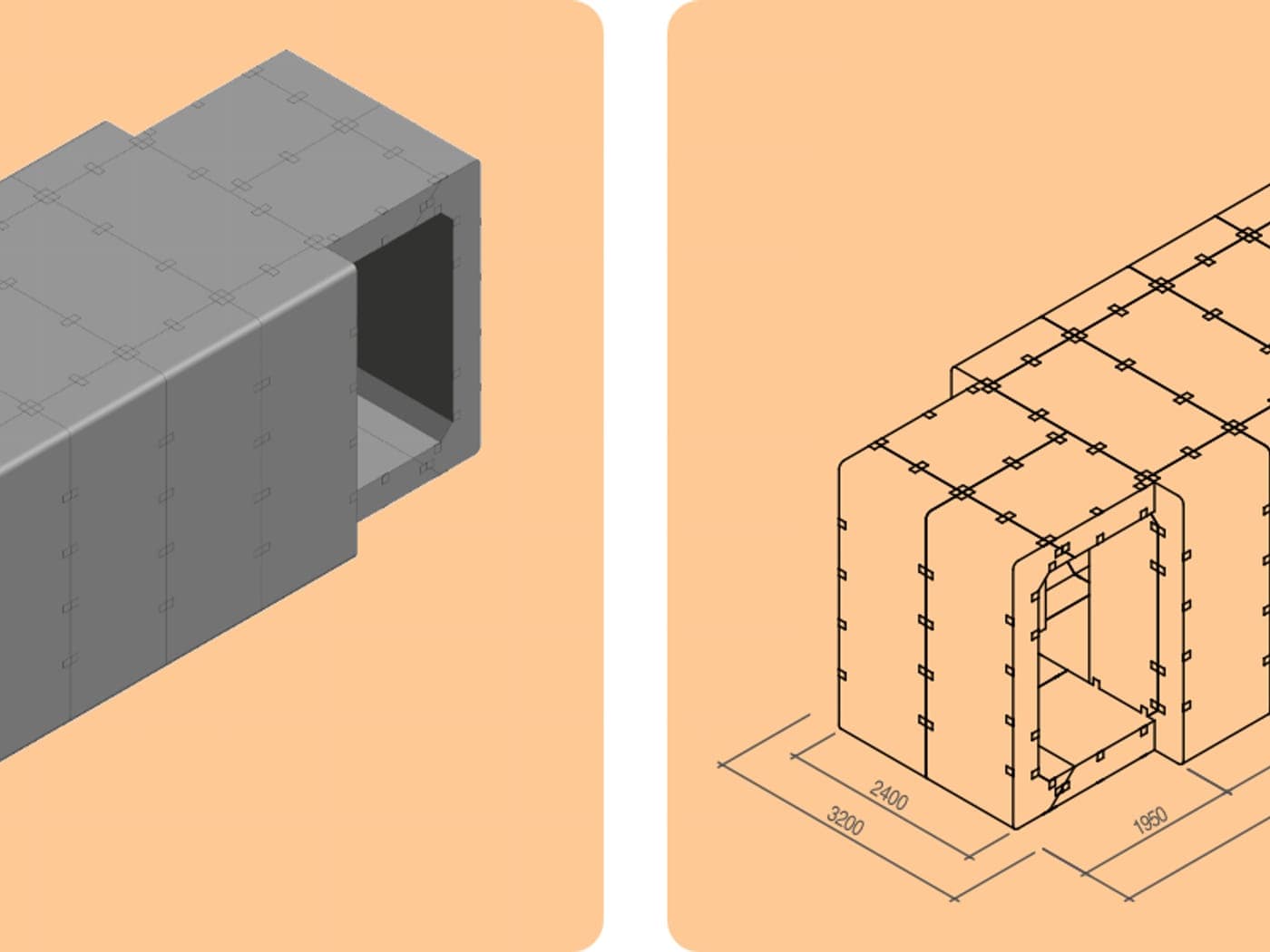

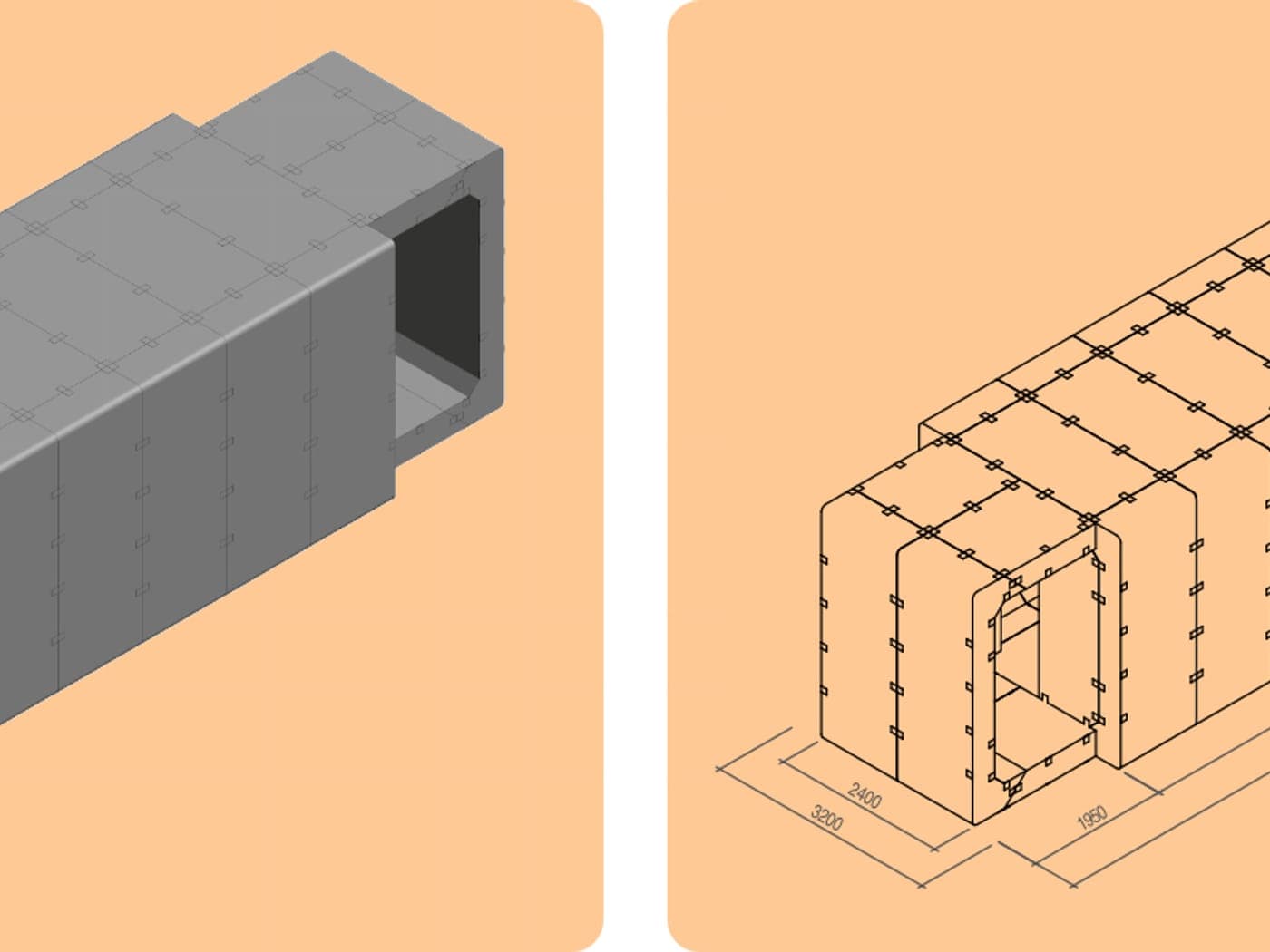

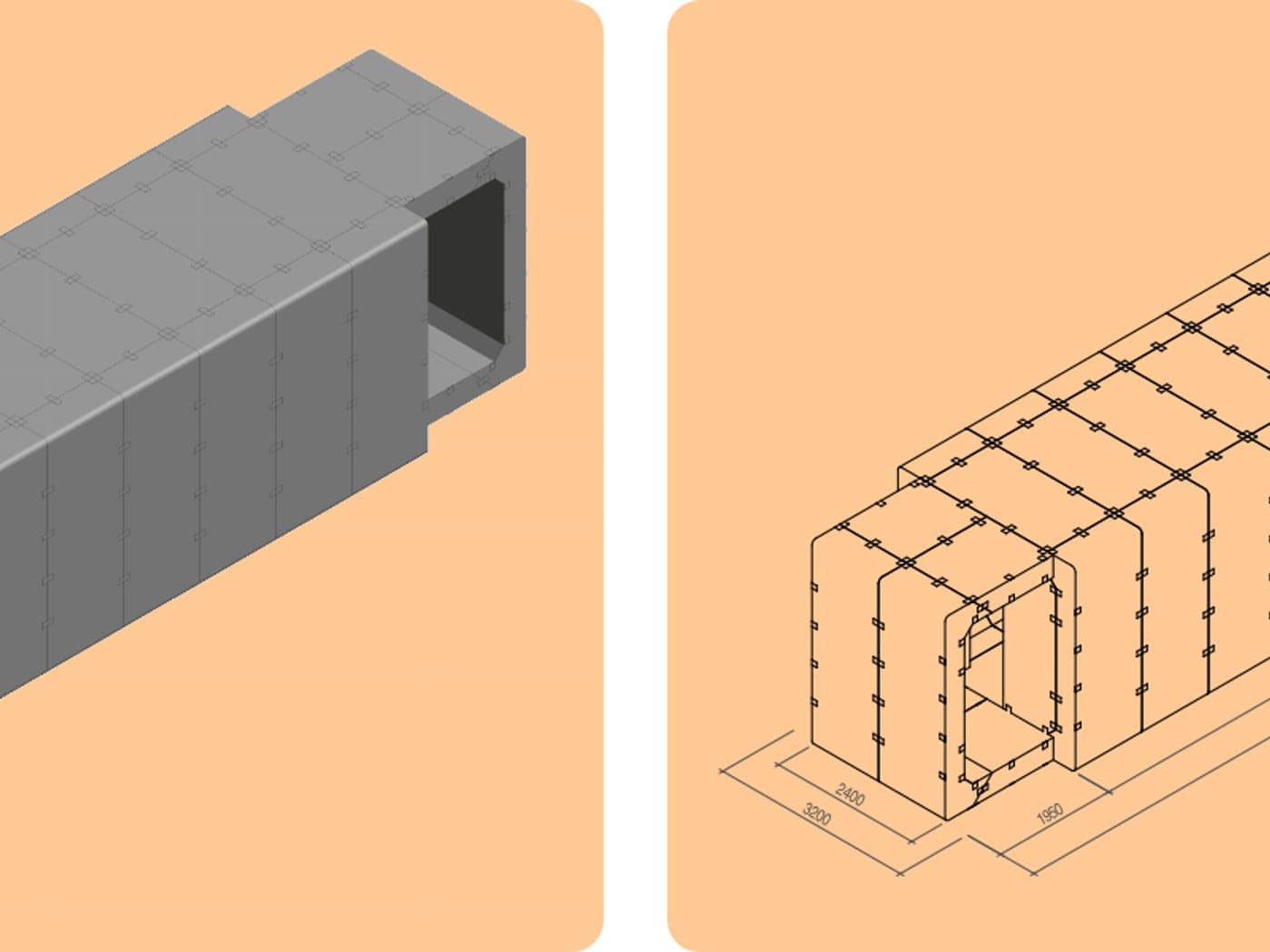

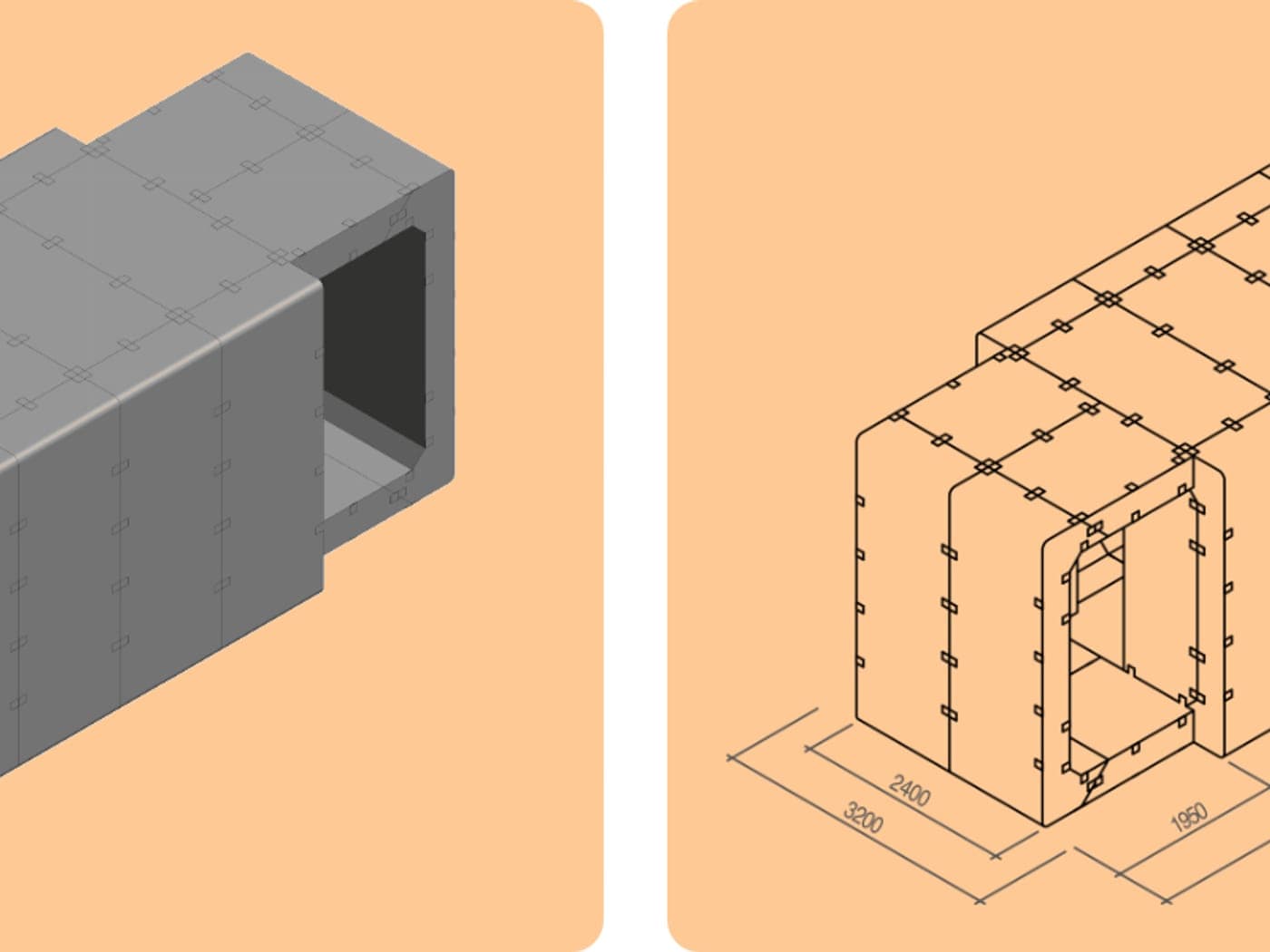

- Sections
- 3
- Vestibules
- 2 (zakryti)
- Usable area
- 17,4 m²
- Capacity
- 30 persons
- Weight
- 140 t
- Protection class
- A-I
- Ceiling thickness
- 700 mm
- Wall & floor thickness
- 350 mm
- Reinforced concrete
- class S35/45
- Embedded steel
- steel grade S245
- Rebar
- class A500S (rozrakhovana na trishchynostiikist)
